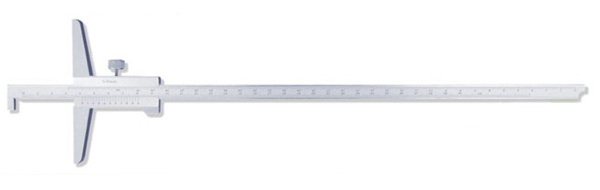

 Vernier Depth Gauges(Hook Type)(Mono-Block)

Inquire Now

  Features :
Can measure groove width and position of a groove
Specifications :

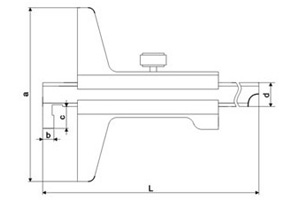

  Measuring Range Order No. Vernier
reading		 Permissible
Error		 L a b c d
  0-150mm 155-101 0.02mm ±0.02mm 250  100  2  2.5  10
  0-200mm 155-102 0.02mm ±0.03mm 300 100 2 2.5 10
  0-250mm 155-103 0.02mm ±0.04mm 350 100 2 2.5 10
  0-300mm 155-105 0.02mm ±0.04mm 400 100 2 2.5 10
  0-400mm 155-110 0.02mm ±0.05mm 505 150 5 10 11
  0-500mm 155-111 0.02mm ±0.05mm 605 150 5 10 11
