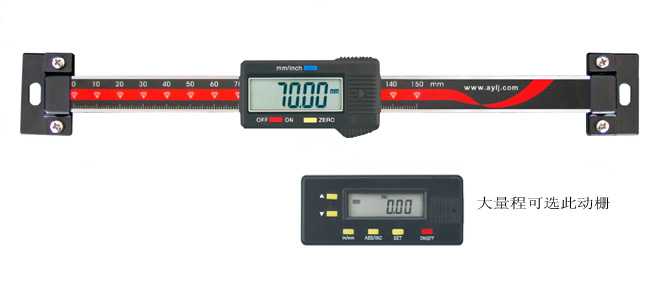

| Digital Scale Units(Horizontal Type) |
|
|
| Features : |
Designed to be installed on the machines and fixtures to measyre the axial movement.
Can be connected with large LCD display unit easy reading.
Zero-setting at any position.
Data output. |
|
| |
| Specifications : |
| |
Measuring Range |
Order No. |
Resolution |
Limit Error |
| |
100mm(4") |
812-100 |
0.01mm(.0005") |
±0.02mm |
| |
150mm(6") |
812-101 |
0.01mm(.0005") |
±0.03mm |
| |
200mm(8") |
812-102 |
0.01mm(.0005") |
±0.03mm |
| |
300mm(12") |
812-103 |
0.01mm(.0005") |
±0.04mm |
| |
400mm(16") |
812-104 |
0.01mm(.0005") |
±0.05mm |
| |
500mm(20") |
812-105 |
0.01mm(.0005") |
±0.05mm |
| |
600mm(24") |
812-106 |
0.01mm(.0005") |
±0.08mm |
| |
700mm(28") |
812-107 |
0.01mm(.0005") |
±0.08mm |
| |
800mm(32") |
812-108 |
0.01mm(.0005") |
±0.10mm |
| |
900mm(36") |
812-109 |
0.01mm(.0005") |
±0.10mm |
| |
1000mm(40") |
812-110 |
0.01mm(.0005") |
±0.10mm |
| |
1200mm(50") |
812-112 |
0.01mm(.0005") |
±0.12mm |
| |
1500mm(60") |
812-115 |
0.01mm(.0005") |
±0.14mm |
| |
2000mm(80") |
812-120 |
0.01mm(.0005") |
±0.20mm |
|
| |
