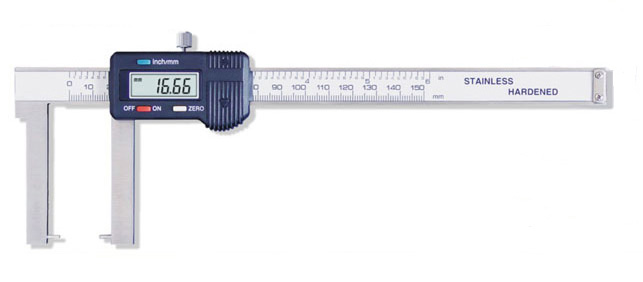

| Outside Groove Digital Calipers with Round Points |
|
|
| Features : |
Flat measuring surfaces or spherical measuring surfaces are optional.
Can measure the width of outside groove or the dimension of bent surfaces.
Zero-setting at any position.
Data output. |
|
| |
| Specifications : |
| |
Measuring Range |
Order No. |
Resolution |
Limit Error |

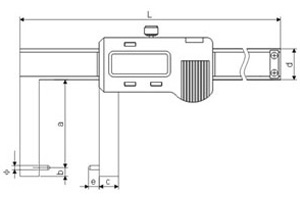

L |
a |
b |
c |
d |
e |
Φ |
| |
0-150mm |
112-111 |
0.01mm |
±0.03mm |
250 |
40 |
3 |
10 |
16 |
5 |
2 |
| |
0-150mm |
112-111-1 |
0.01mm |
±0.04mm |
250 |
70 |
3 |
10 |
16 |
5 |
2 |
| |
0-150mm |
112-111-2 |
0.01mm |
±0.05mm |
290 |
100 |
3 |
20 |
20 |
10 |
3 |
| |
0-200mm |
112-112 |
0.01mm |
±0.04mm |
300 |
50 |
3 |
12 |
16 |
8 |
2.5 |
| |
0-200mm |
112-112-1 |
0.01mm |
±0.04mm |
300 |
80 |
3 |
12 |
16 |
8 |
2.5 |
| |
0-200mm |
112-112-2 |
0.01mm |
±0.05mm |
340 |
110 |
3 |
22 |
20 |
12 |
3 |
| |
0-300mm |
112-113 |
0.01mm |
±0.04mm |
410 |
60 |
3 |
14 |
17 |
10 |
2.5 |
| |
0-300mm |
112-113-1 |
0.01mm |
±0.05mm |
440 |
100 |
3 |
20 |
20 |
10 |
3 |
| |
0-300mm |
112-113-2 |
0.01mm |
±0.05mm |
480 |
150 |
3 |
20 |
24 |
12 |
3 |
| |
0-500mm |
112-115 |
0.01mm |
±0.06mm |
680 |
100 |
3 |
20 |
24 |
12 |
3 |
| |
0-500mm |
112-115-1 |
0.01mm |
±0.07mm |
680 |
150 |
3 |
20 |
24 |
12 |
3 |
| |
0-500mm |
112-115-2 |
0.01mm |
±0.08mm |
680 |
200 |
3 |
20 |
24 |
12 |
3 |
|
| |
