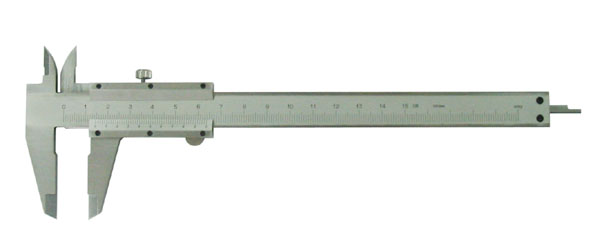

  Vernier Calipers (Open Vernier)

Inquire Now

  Features :
Four-way measurement
With depth measuring bar
Graduation: 0.02mm/0.05mm
Specifications :
  Measuring
Range		 Order No. Veriner
reading		 Permissible
Error		 L a b c d
  0-150mm 141-002 0.02mm ±0.02mm 236 40 21 16.5 16
  0-150mm 141-003 0.05mm ±0.05mm 236 40 21 16.5 16
  0-200mm 141-004 0.02mm ±0.03mm 286 50 24 19.5 16
  0-200mm 141-005 0.05mm ±0.05mm 286 50 24 19.5 16
  0-300mm 141-006 0.02mm ±0.04mm 400 60 25 20.5 17
  0-300mm 141-007 0.05mm ±0.08mm 400 60 25 20.5 17
